Commutator rau Cov Cuab Yeej Hluav Taws Xob: Cov Khoom Me Me Tom Qab Kev Txhim Kho Lub Cev Muaj Zog

Thaum tib neeg siv cov cuab yeej hluav taws xob xws li hluav taws xob laum, lub kaum sab xis grinders, saws, thiab polishing tshuab, lawv feem ntau tsom rau lub cev muaj zog, ceev, thiab kav ntev. Txawm li cas los xij, hauv ntau lub tshuab hluav taws xob txhuam hluav taws xob, cov khoom me me ua lub luag haujlwm tseem ceeb hauv kev hloov hluav taws xob hluav taws xob rau hauv cov tshuab hluav taws xob -Commutator rau cov cuab yeej fais fab. Txawm hais tias lub commutator tsuas yog ib feem me me ntawm lub cav sib dhos, nws cov qauv tsim ncaj qha cuam tshuam rau lub cev muaj zog, kev ua haujlwm ruaj khov, suab nrov, thiab kev pabcuam lub neej. Hauv kev lag luam uas xav tau cov cuab yeej siv hluav taws xob nrawm, kev tsim khoom siv hluav taws xob suav nrog kev ua haujlwm zoo, xaiv cov khoom siv, thiab kev tswj xyuas nruj.

Dab tsi yog Commutator rau Cov Cuab Yeej Hluav Taws Xob?

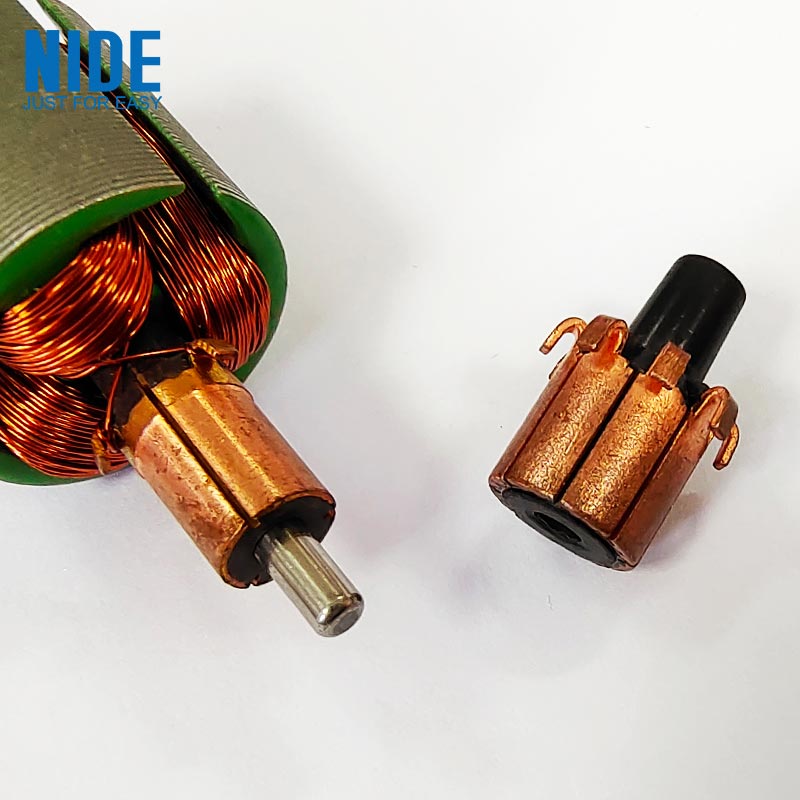

A Commutator rau cov cuab yeej fais fabyog ib tug rotating hluav taws xob hloov khoom siv nyob rau hauv brushed DC motors thiab universal motors. Nws lub luag haujlwm tseem ceeb yog tswj cov kev taw qhia ntawm tam sim no ntws los ntawm lub cev muaj zog windings, tso cai rau lub cev muaj zog rotor mus txuas ntxiv. Ib tug commutator ib txwm muaj xws li:

Cheebtsam	Muaj nuj nqi
Copper Segments	Ua hluav taws xob tam sim no ntawm txhuam thiab rotor windings
Cov khoom siv rwb thaiv tsev	Separates tus neeg tooj liab ntu hluav taws xob
Core Structure	Muab txhua yam kev txhawb nqa rau kev ua haujlwm rotating
Kev sib txuas Terminals	Txuas lub commutator nrog lub cev muaj zog windings

Thaum lub sijhawm ua haujlwm, cov txhuam hniav sib txuas mus rau qhov rotating commutator nto kom hloov hluav taws xob rau lub cev muaj zog.

Vim li cas tus Commutator tseem ceeb hauv Power Tool Motors?

Lub tshuab fais fab lub cev muaj zog ua haujlwm raws li qhov xav tau: Kev sib hloov ceev Nquag pib thiab nres Heavy mechanical loads Kev vibration tsis tu ncua Lub commutator yuav tsum muaj kev tiv thaiv hluav taws xob ruaj khov thaum lub sijhawm cov xwm txheej no. Ib tug zoo tsim commutator pab txhim kho: Lub cev muaj zog efficiency Kev sib hloov stability Hluav taws xob conductivity Cov cuab yeej ua haujlwm lub neej Yog hais tias lub commutator nto hnav tsis sib xws, nws yuav ua rau muaj teeb meem xws li: Nce sparks Txo lub cev muaj zog Kev tsim hluav taws xob ntau dhau Shortened txhuam lub neej

Ib qho kev lag luam zais cia: Qhov Nto Zoo ntawm Commutator tseem ceeb tshaj qhov nws tshwm sim

Lub commutator yuav zoo li ib qho yooj yim tooj liab tivthaiv, tab sis nws qhov chaw saum npoo yog qhov tseem ceeb heev. Motor manufacturers tau them nyiaj mloog mus rau: Segment precision Nto roughness Roundness raug Rwb thaiv tsev sib nrug Txawm tias qhov sib txawv me me ntawm kev tsim khoom tuaj yeem cuam tshuam: Tiv tauj kev ruaj ntseg nrog cov txhuam hniav Hluav taws xob tsis kam Thaum tshav kub kub tiam Rau cov cuab yeej siv hluav taws xob siab ceev, qhov tsis sib xws me me hauv cov khoom sib hloov tuaj yeem tsim kev co thiab txo cov kev ua haujlwm ntawm lub cev muaj zog.

Cov khoom siv hauv cov cuab yeej hluav taws xob Commutators

Cov khoom sib xyaw ua ke ntawm lub commutator txiav txim siab nws cov hluav taws xob thiab kev ua haujlwm zoo.

Copper Segments

Copper feem ntau siv vim nws: High hluav taws xob conductivity Kev ua haujlwm zoo thermal Tsim nyog txhua yam khoom

Cov khoom siv rwb thaiv tsev

Rwb thaiv tsev ntawm ntu tooj liab tiv thaiv hluav taws xob luv luv. Cov ntaub ntawv uas muaj xws li: Mica High-temperature insulating compounds

Cov khoom siv tshwj xeeb alloy

Qee daim ntawv thov siv tooj liab alloys los txhim kho: Hnav tsis kam Mechanical zog Kev ua haujlwm siab ceev

Cov txheej txheem tsim khoom qab lub zog cuab yeej Commutator

Ua ib tug txhim khu kev qha commutator yuav tsum tau ob peb precision txheej txheem.

Copper Segment txoj kev

Copper daim yog zoo li tus mus rau hauv qhov tseeb raws li lub cev muaj zog tsim yuav tsum tau.

Moulding thiab Assembly

Cov ntu tooj liab yog tsau nrog cov ntaub ntawv rwb thaiv tsev los tsim kom tiav cov qauv tig.

Machining thiab Surface Finishing

Lub commutator nto yog ua tiav los xyuas kom meej: Kho txoj kab uas hla Smooth kov nto Kev sib hloov ruaj khov

Kev sim

Kev tshuaj xyuas zoo yuav suav nrog: Kev ntsuas qhov ntev Kev ntsuas hluav taws xob conductivity Kev ntsuas rwb thaiv tsev Dynamic balance testing

Commutator vs Brushless Tsav Technology

Nrog rau txoj kev loj hlob ntawm brushless lub cev muaj zog thev naus laus zis, qee cov cuab yeej hluav taws xob niaj hnub tau hloov cov tsoos brushed motors. Qhov sib txawv muaj xws li:

Feature	Brushed Tsav nrog Commutator	Brushless Tsav
Qauv	Siv txhuam thiab commutator	Siv hluav taws xob tswj qhov system
Kev tu	Yuav tsum tau hloov txhuam raws sijhawm	Feem ntau txo cov neeg kho tshuab hnav
Nqi	Tsim kev lag luam ntau dua	Kev xav tau technology siab dua
Daim ntawv thov	Feem ntau hauv ntau cov cuab yeej siv hluav taws xob	Kev siv ntau ntxiv hauv cov cuab yeej siv siab heev

Txawm hais tias brushless lub cev muaj zog loj hlob, commutator-based motors tseem siv dav vim tias lawv cov cuab yeej paub tab, tus nqi zoo, thiab kev ua tau zoo.

Common Applications of Commutators in Power Tools

Commutators yog dav siv nyob rau hauv motors rau:

Hluav taws xob xyaum

Muab kev sib hloov ruaj khov rau kev ua haujlwm drilling thiab fastening.

Lub kaum sab xis grinders

Txhawb kev sib hloov ceev ceev raws li xav tau kev ua haujlwm.

Hluav taws xob saws

Tswj lub cev muaj zog ua haujlwm thaum txiav cov khoom thauj.

Sanders thiab Polishing cuab yeej

Muab kev tswj ceev kom zoo ib yam rau kev ua tiav.

Qhov Kev Sib Tw Thaum Ntxov: Tswj Kub thiab Hnav

Ib qho kev sib tw loj tshaj plaws hauv kev tsim qauv commutator yog tswj kev sib raug zoo ntawm kev ua haujlwm hluav taws xob thiab kev siv tshuab. Thaum ua haujlwm: Cov txhuam hniav tsim kev sib txhuam Hluav taws xob tam sim no ua kom sov Kev sib hloov ua rau cov neeg kho tshuab kev nyuaj siab Ib tug zoo commutator tsim yuav tsum sib npaug: Kev coj ua Hnav tsis kam Kub stability Tiv tauj kev ntseeg siab Qhov no yog vim li cas xaiv cov khoom siv thiab kev tsim khoom raug yog qhov tseem ceeb.

Yav Tom Ntej Trends of Power Tool Commutators

Txhim kho cov khoom siv technology

Kev txhim kho yav tom ntej yuav tsom mus rau: Cov ntaub ntawv hnav-resistant zoo dua Txhim kho tooj liab alloy kev ua tau zoo Lub neej ua haujlwm ntev dua

Higher Precision Manufacturing

Cov khoom siv ntau lawm yuav txhim kho: Dimensional raug Qhov sib xws Lub cev muaj zog efficiency

Hybrid Motor Development

Txawm hais tias brushless motors loj hlob tuaj, txhim kho brushed lub cev muaj zog thev naus laus zis tuaj yeem ua haujlwm txuas ntxiv rau cov nqi-sensitive thiab kev lag luam.

Xaus: Ib qho me me uas txhawb nqa cov cuab yeej muaj zog

Lub Commutator rau Cov Cuab Yeej Hluav Taws Xob tuaj yeem muab zais rau hauv lub cev muaj zog, tab sis nws lub luag haujlwm tseem ceeb rau kev hloov hluav taws xob hluav taws xob thiab kev ua haujlwm ruaj khov. Los ntawm kev tsim khoom zoo, cov khoom siv siab heev, thiab kev txhim kho tas mus li, commutators txuas ntxiv txhawb kev ua tau zoo hauv kev xyaum, grinders, saws, thiab ntau lwm yam khoom siv fais fab. Qhov kev sib hloov me me no qhia tau hais tias txawm tias qhov tsawg tshaj plaws tuaj yeem muaj kev cuam tshuam loj rau kev ua haujlwm ntawm cov khoom siv.
