24 Segmented Commutator Rau DC Tsav

Qhov no 24 Segmented Commutator yog tsim rau micro DC thiab universal motors. NIDE koom nrog hauv kev tsim, kev tsim kho, thiab kev tsim cov qhov, sib txuas, thiab cov qauv sib txuas (cov khoom sau) rau DC motors thiab universal motors. Thiab tuaj yeem muab ntau hom kev tsav tsheb commutators raws li cov neeg siv khoom xav tau. Peb muaj kev ruaj ntseg zoo thiab kev tswj hwm kev lag luam siab heev.Cov hauv qab no yog kev qhia txog 24 Segmented Commutator Rau DC Tsav, Kuv vam tias yuav pab koj nkag siab zoo dua.

Qauv:NDPJ-HXQ-1002

Xa lus nug

Product Description

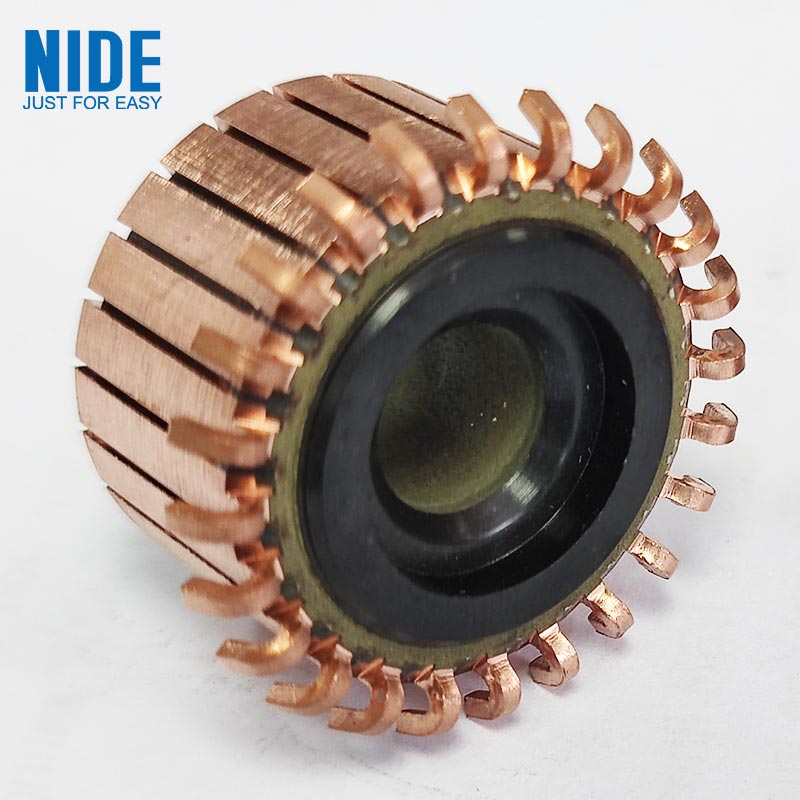

24 SegmentedCommutator Rau DC Tsav

1.Product Introduction

Lub 24 Segmented Commutator suav nrog lub hauv paus rov qab ua los ntawm bake lite hmoov cov ntaub ntawv thiab ib tug nuv-hom reversing tooj liab daim ntawv uniformly teem nyob rau hauv lub ncig ntawm lub rov qab puag lub cev.Cov yam ntxwv yog tias lub nplhaib txhawb nqa tau npaj rau hauv lub nplhaib txhawb nqa yog ib puag ncig los ntawm ntau lub nplhaib. Tus naj npawb ntawm cov hlaws dai yog tib yam li tus naj npawb ntawm cov sib txuas sib txuas ntawm tooj liab daim hlau.Sab saum toj ntawm tus nuv-hom reversing tooj liab daim ntawv yog muab nrog ib tug nuv. Lub nplhaib txhawb nqa yog muab rau ntawm qhov chaw sab sauv thiab qis kawg ntawm daim ntawv tooj liab thim rov qab, thiab cov ntawv sib txuas sib txuas uas nyob ib sab yog insulated thiab cais los ntawm cov nplooj ntawv mica.

2.Product Parameter (Specification)

Khoom npe:	24 segmented Commutator rau DC Tsav
Xim:	Copper Tone
Khoom siv:	Tooj, Hlau; 0.03% lossis 0.08% Silver Copper
Hom:	Hook commutator
Hniav Quantity:	24 Pcs
Kev siv:	DC Tsav
