3 Hlau 17AM Thermal tiv thaiv

NIDE tshwj xeeb hauv kev xa tawm ntau hom 3 Hlau 17AM Thermal Protector. Lub 17AM kub tam sim no thermal tiv thaiv rau lub nruas tshuab ntxhua khaub ncaws yog dav siv nyob rau hauv motors, dej twj, kiv cua, cua txias kiv cua, khoom siv fais fab, fais vuam tshuab, roj teeb pob, transformers, ballasts, khoom siv teeb pom kev zoo, thiab cov khoom siv hluav taws xob rau cov khoom siv hauv tsev. Overcurrent thermal tiv thaiv teb

Qauv:NDPJ-RBHQ-66

Xa lus nug

Product Description

3 Hlau 17AM Thermal tiv thaiv

Lub 17AM peb xaim Thermal tiv thaiv yog 10A, 135 ± 15⁰C nyob rau, 150 ± 5⁰C tawm, max.500V.

17AM thermal tiv thaiv tiv thaiv overheating nyob rau hauv ntau yam khoom siv hauv tsev, kev lag luam thiab kev lag luam. Peb tuaj yeem tsim cov hlau lead ntau yam kom tau raws li cov neeg siv khoom xav tau rau tag nrho ntev, hom hlau, hlau loj, txiav kev sib txuas thiab stripped ntev yuav tsum tau. Nws yog ib qho me me, snap-acting, thermally ua ntaus ntawv uas yog ib qho pov thawj ua yeeb yam hauv kev tiv thaiv thev naus laus zis.

3 Hlau 17AM Thermal tiv thaivCov ntaub ntawv

Khoom npe:	Series Thermal Protector Nrog 3 Hlau
Hom:	17AM 150 Degree Kub Hloov;
Xim:	Dawb
Loj:	Nquag kaw
kab ntev:	> 10 cm
kab hnub:	> 0.5 hli
Tiv tauj tsis kam:	<50mΩ
Ua haujlwm kub:	150 ± 5 ⁰C tawm
Pib dua kub:	135 ± 15 ⁰C nyob rau

Tam sim no ntws los ntawm koj cov kev sib txuas ua ke mus rau hauv lub davhlau ya nyob twg crimp, los ntawm cov tswv cuab, bimetal disc, thiab mating hu. Qhov tam sim no ua tiav nws txoj hauv kev los ntawm kev tawm los ntawm cov neeg siv phaj thiab cov phaj sib xyaw ua ke crimp davhlau ya nyob twg rau koj cov kev sib txuas ua ke. Raws li qhov kub thiab txias, cov cua kub hloov mus rau bimetal disc. Lub disc ces snaps qhib ntawm lub Hoobkas-calibrated qhib qhov kub thiab txias, yog li rhuav txoj kev tam sim no. Lub bimetal disc snaps kaw thaum qhov ntsuas kub tau ua tiav.

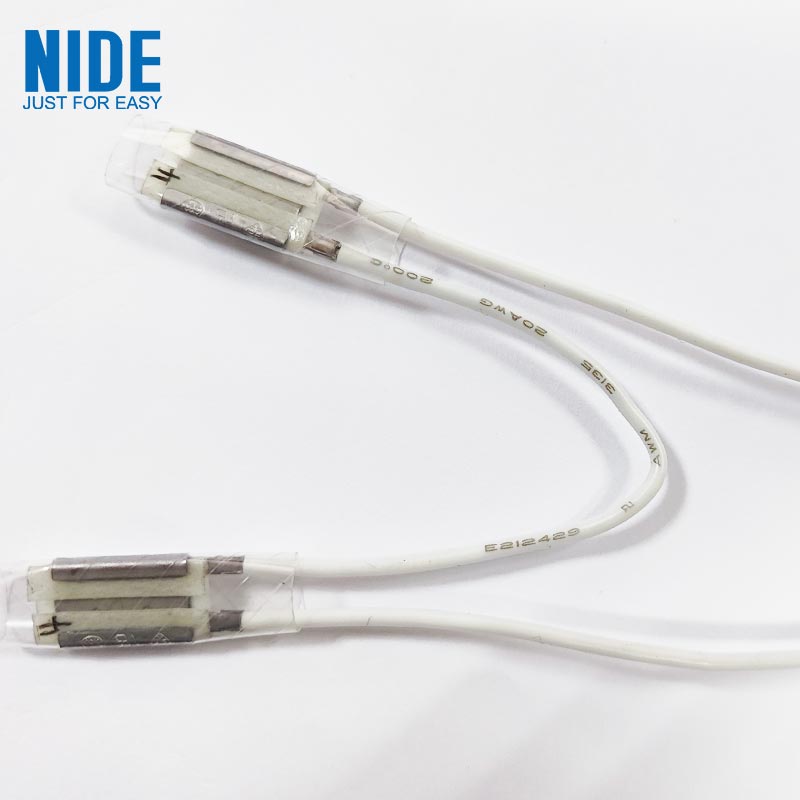

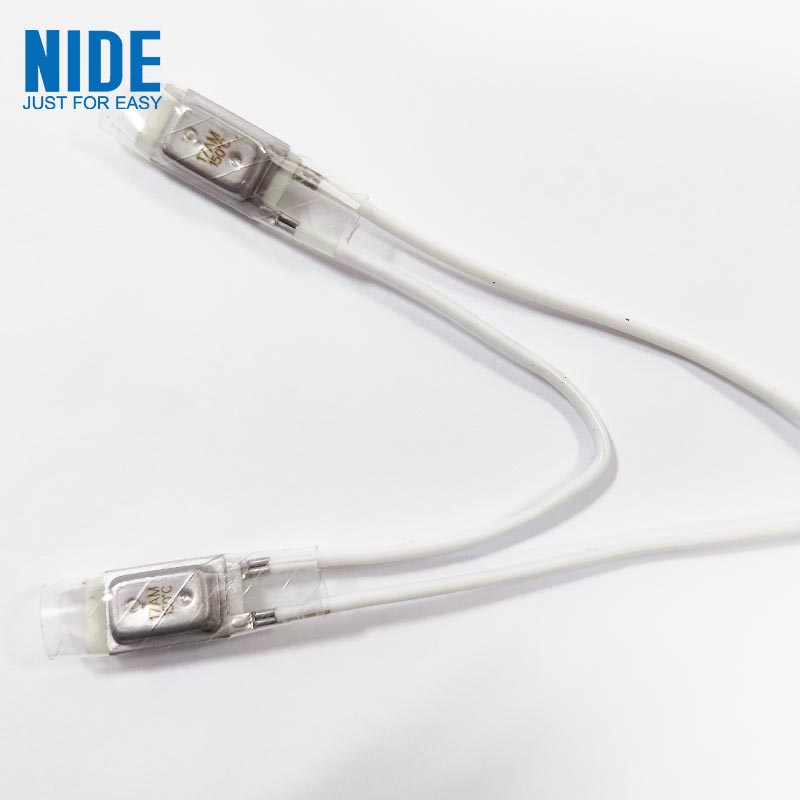

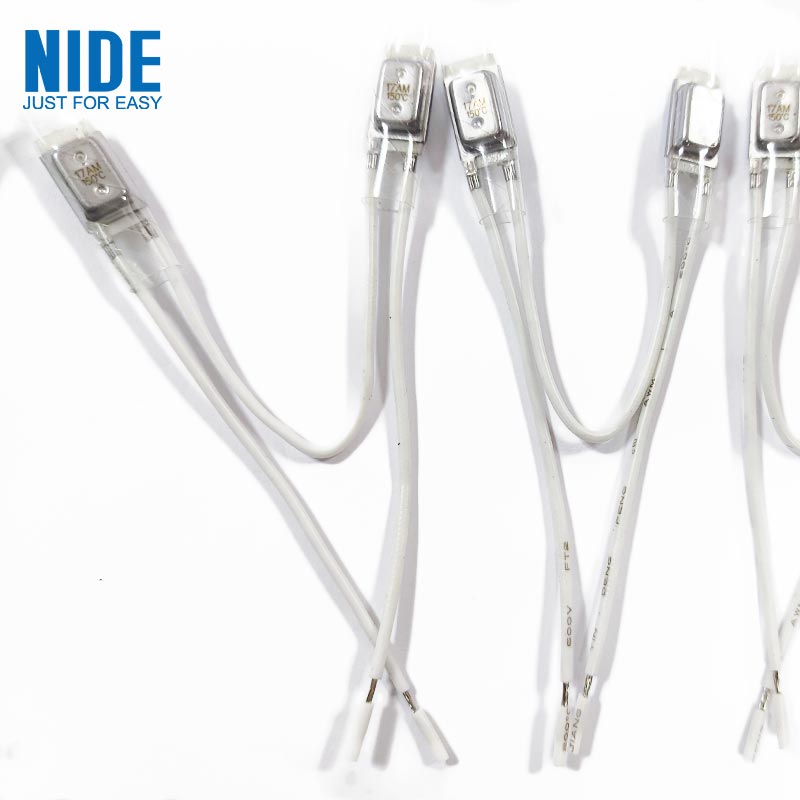

3 Hlau 17AM Thermal tiv thaivDuab
