Armature Commutator rau cov cuab yeej fais fab

NIDE tshwj xeeb hauv kev tsim khoom ntawm Armature Commutator rau Cov Cuab Yeej Hluav Taws Xob hauv Suav teb, cov khoom tshwj xeeb yog n20, n60, 280, 370, 365, 380, 550, 555, nrog rau ntau yam commutators ntawm series motors, thiab kuj tuaj yeem ua raws li rau cov neeg siv khoom xav tau.

Xa lus nug

Product Description

Armature Commutator rau cov cuab yeej fais fab

1.Product Introduction

Cov cuab yeej fais fab no Armature Commutator yog ib hom micro motor commutator nrog lub neej ua haujlwm ntev. Qhov chaw ntawm lub commutator no muaj ib tug ntxaiv los ntawm lub qhov. Lub commutator muab faib ua txoj kab uas hla loj, nruab nrab txoj kab uas hla thiab me me txoj kab uas hla. Ob peb ntu commutator yog tsau rau ntawm ntu, thiab cov khoom siv insulating tau teem caij nruab nrab ntawm cov commutator ntu.

2.Product Parameter (Specification)

Qauv	Sab nraud	Sab hauv	Qhov dav	Hook Foot Length	Tus nab npawb	Copper Qhov siab	Tag nrho qhov siab
365	5.6	2.3	0.35	1.6	5	7.5	12
365	5.6	2.3	0.4	2	5	8	12
385	5.6	2.3	0.4	1.6	5	7.5	11.4
380	5.6	2.3	0.4	2.5	3	8	12
380	5.6	2.3	0.4	2	3	8	11.4
555	7.6	3.175	0.45	2.5	5	10.5	17.3
545	7.6	3.175	0.45	2	5	10.5	13.5
550	7.6	3.175	0.45	3.5	3	11.5	16.8
280	4.2	2	0.3	2	3	6	10
775	10	5	0.5	3.5	5	14	22.5

3.Product Feature Thiab Daim Ntawv Thov

Qhov saum npoo ntawm Cov Cuab Yeej Siv Hluav Taws Xob Armature Commutator ntu yog muab nrog tungsten thiab molybdenum anti-oxidation txheej, uas yog tsim rau sab hauv ntawm micro motors dav dav thiab siv los ua lub cev muaj zog commutators.

4.Product Paub meej

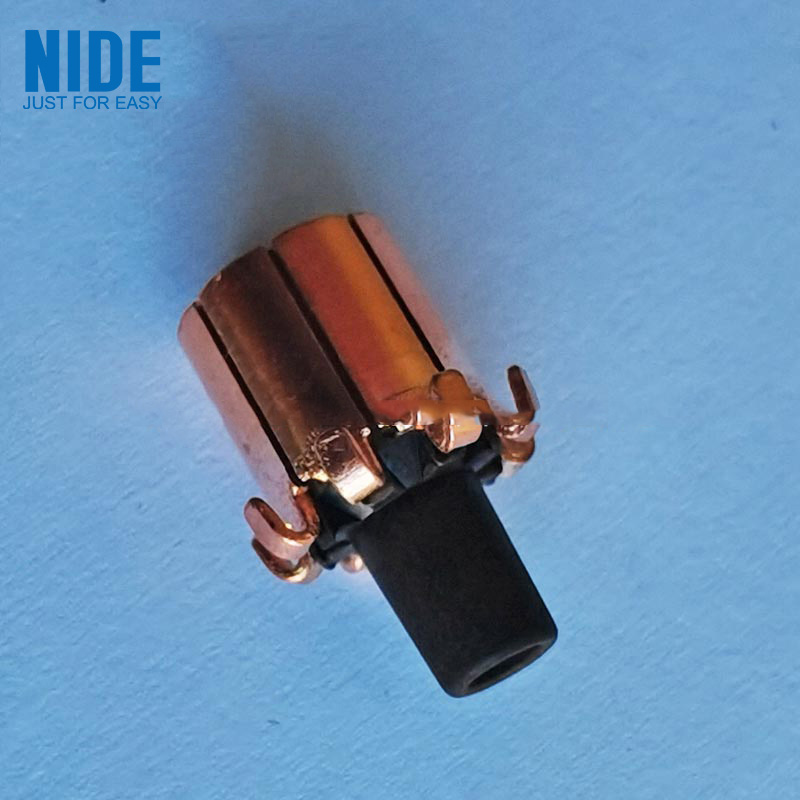

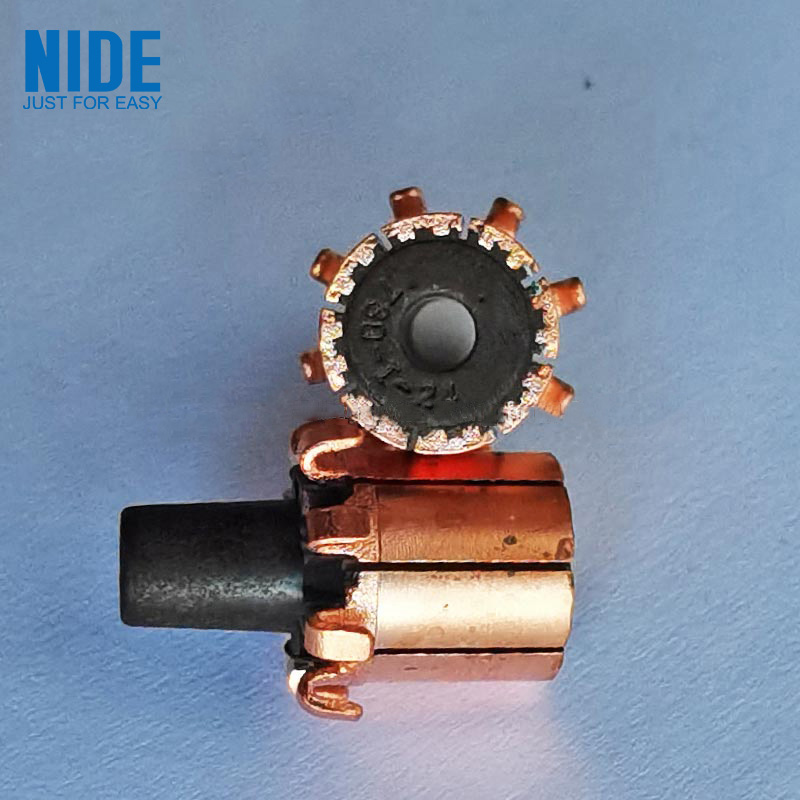

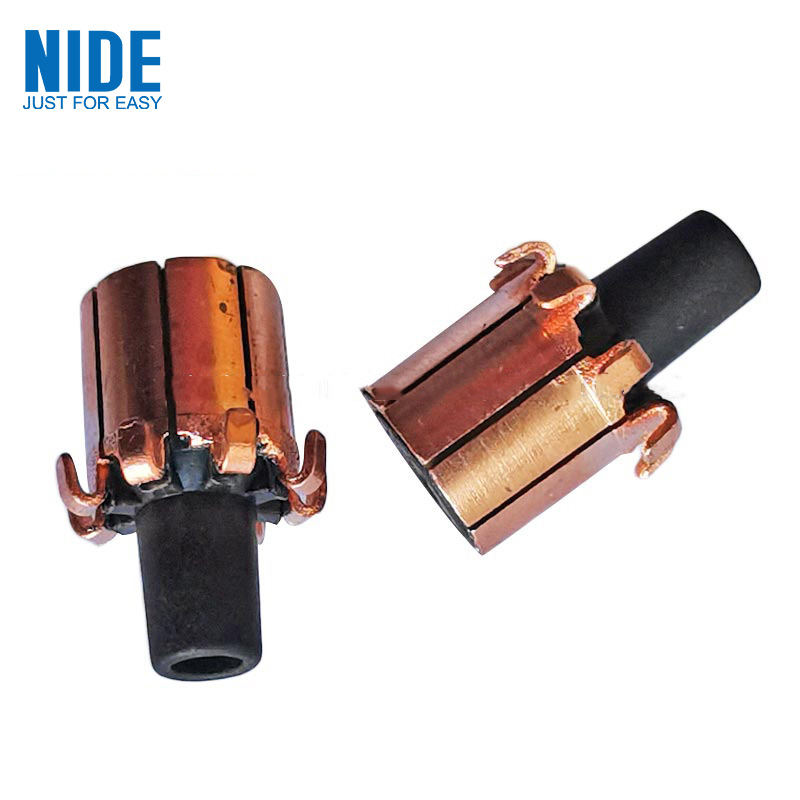

Cov cuab yeej fais fab Armature Commutator
