Muaj dej twj tso kua mis lub cev muaj zog KW thermal tiv thaiv

Muaj dej twj tso kua mis lub cev muaj zog KW thermal tiv thaiv

1. Cov yam ntxwv ntawm thermal tiv thaiv

KW series thermal protector yog cov khoom lag luam nrog cov yam ntxwv ntawm qhov ntsuas kub. Cov khoom lag luam muaj cov yam ntxwv ntawm cov qauv siab heev, me me, kev ua haujlwm siab, lub zog hluav taws xob loj thiab lub neej ntev.

Tus neeg xyuas pib: tinned tooj liab tub ntxhais hlau, txheej rwb thaiv tsev yog ua los ntawm cov khoom siv polyethylene, cov khoom siv silicone, nrog UL ntawv pov thawj tus neeg xyuas pib; .

Plhaub: PBT engineering yas plhaub lossis hlau plhaub nrog npib tsib xee thiab zinc alloy plating;

Cov khoom siv tes tsho: PET polyester insulating lub tes tsho lossis PE hom lub tes tsho, uas ua tau raws li qhov yuav tsum tau ua ntawm cov khoom siv hluav taws xob.

Lub neej: Khoom lub neej ≥ 10,000 zaug

2. KW thermal tiv thaiv kev ua haujlwm

Rated tam sim no:	Voltage 12V-DC 24V-DC 120V-AC 250V-AC Tam sim no tam sim no 12A 10A 8A 6A 5A
Ua haujlwm kub:	60 ° C-160 ° C, kam rau ua ± 5 ° C.
Lead hlau tensile xeem:	Cov hlau lead ntawm lub thermal tiv thaiv yuav tsum muaj peev xwm tiv taus lub zog tensile ntau dua lossis sib npaug ntawm 50N rau 1min yam tsis muaj kev tawg lossis xoob.
Rwb thaiv tsev voltage:	ib. Lub thermal tiv thaiv yuav tsum muaj peev xwm tiv taus AC660V, 50Hz alternating tam sim no ntawm cov xaim tom qab thermal disconnection, thiab qhov kev ntsuam xyuas kav ntev li 1min yam tsis muaj kev cuam tshuam flashover; b. Lub davhlau ya nyob twg ntawm lub thermal tiv thaiv thiab nto ntawm lub tes tsho insulating los yog saum npoo ntawm lub thermal protector tuaj yeem tiv taus AC1500V, 50Hz alternating tam sim no rau 1min yam tsis muaj kev cuam tshuam flashover;
Rwb thaiv tsev tsis kam:	Raws li ib txwm muaj, qhov rwb thaiv tsev ntawm cov hlau thiab lub tes tsho insulating yog siab dua 100MQ. (Cov ntsuas siv yog DC500V rwb thaiv tsev ntsuas ntsuas)
Tiv tauj tsis kam:	Kev tiv thaiv kev tiv thaiv ntawm lub thermal tiv thaiv yuav tsum tsis txhob ntau tshaj 50mQ thaum cov neeg raug kaw.
Kev ntsuas kub tsis kam:	Cov khoom yog muab tso rau hauv ib puag ncig ntawm 150 "C rau 96 teev.
Humidity resistance test:	Cov khoom tau muab tso rau hauv ib puag ncig ntawm 40C thiab cov av noo ntawm 95% rau 48 teev.
Thermal shock test:	Cov khoom yog muab tso ua ke ntawm 150 ° C thiab - 20 ° C rau 30min txhua, rau tag nrho ntawm 5 cycles.
Anti-vibration test:	Cov khoom tuaj yeem tiv taus qhov amplitude ntawm 1.5 hli, zaus hloov pauv ntawm 10-55HZ, lub sijhawm hloov pauv ntawm 3-5min, thiab vibration cov lus qhia X, Y, Z, thiab kev co tsis tu ncua rau 2 teev hauv txhua qhov kev taw qhia.
Poob xeem:	Cov khoom yog dawb los poob ib zaug los ntawm qhov siab ntawm 200mm.
Compression kuj:	Muab cov khoom tso rau hauv lub tank kaw, siv lub siab ntawm 2Mpa thiab khaws cia rau 24 teev.

3 KW Thermal Protector Notes:

3.1 Cov cua kub ntawm qhov ntsuas qhov ntsuas kub yuav tsum tau tswj kom 1 ° C / 1min;

3.2 Lub plhaub tiv thaiv yuav tsum tsis txhob muaj kev cuam tshuam muaj zog thiab siab thaum siv.

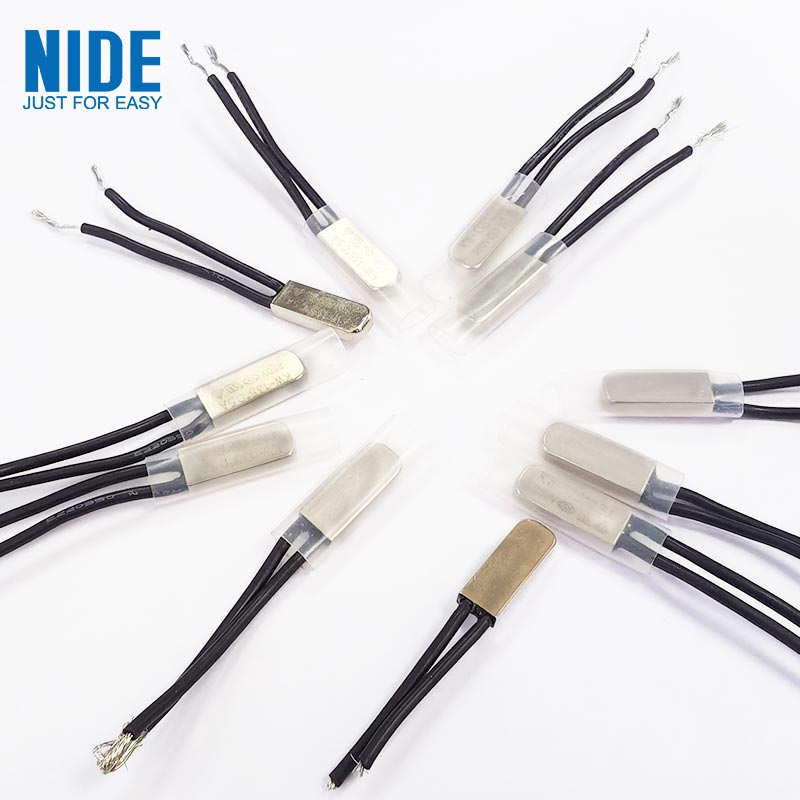

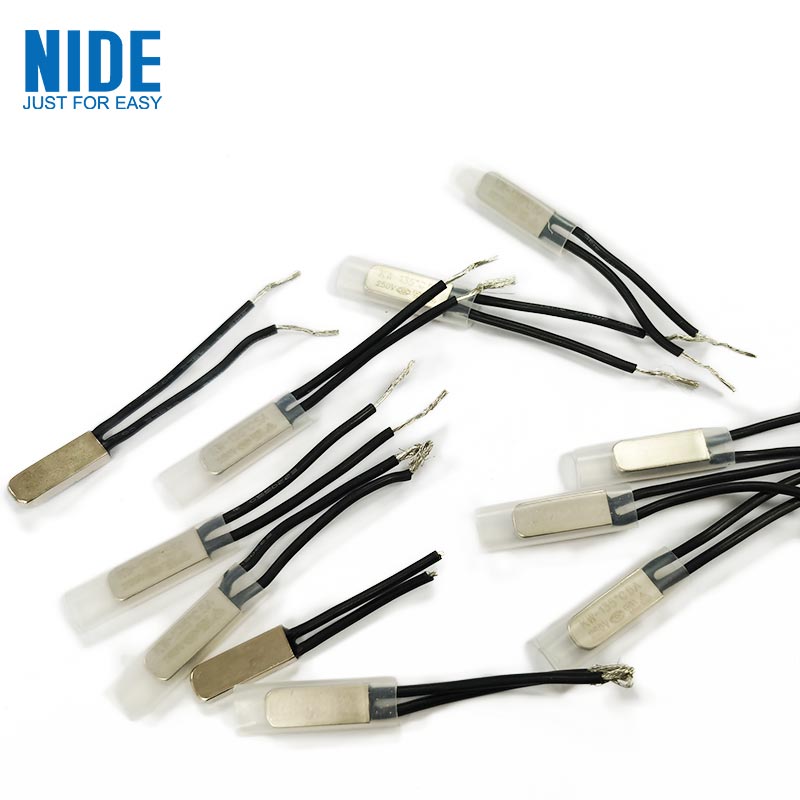

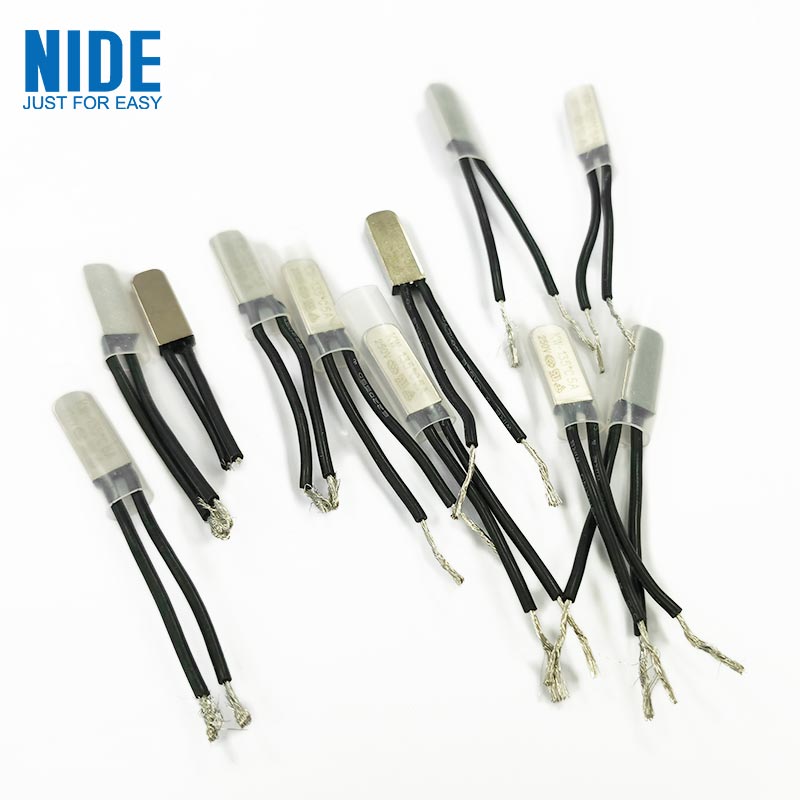

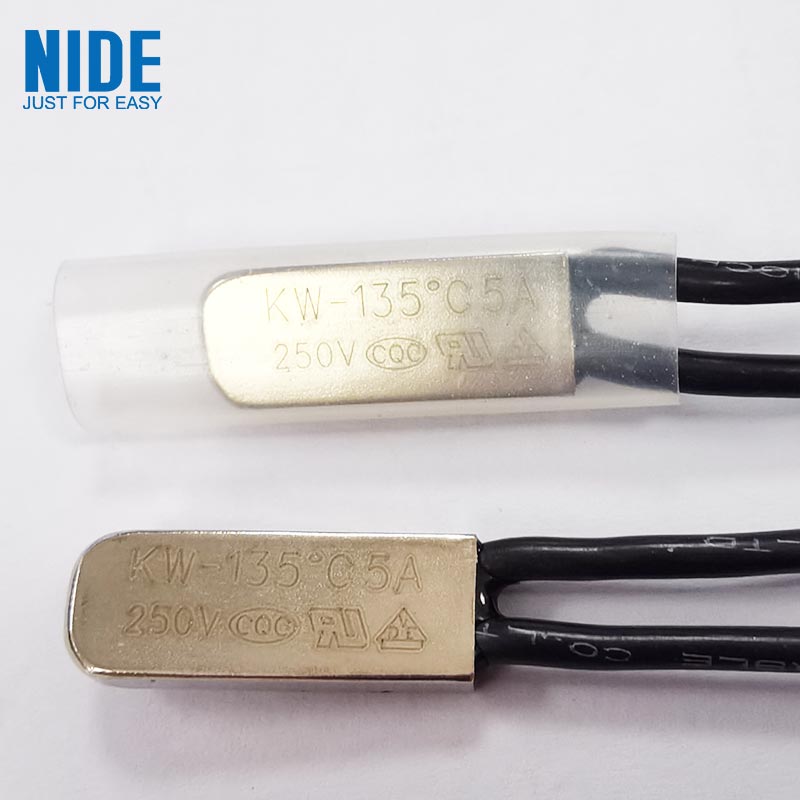

4. KW thermal tiv thaiv daim duab tso saib

Customized Thermal tiv thaiv:

1. Customized txhuas hlau: Customized hlau khoom, ntev thiab xim raws li cov neeg siv khoom xav tau

2. Customized hlau plhaub: Customize cov khoom sib txawv raws li cov neeg siv khoom xav tau, suav nrog cov plhaub yas, hlau plhaub, stainless hlau plhaub, thiab lwm yam hlau plhaub.

3. Mekas tshav kub shrinkable tes tsho: Customize txawv kub resistant polyester tshav kub shrinkable tes tsho raws li cov neeg xav tau kev pab
