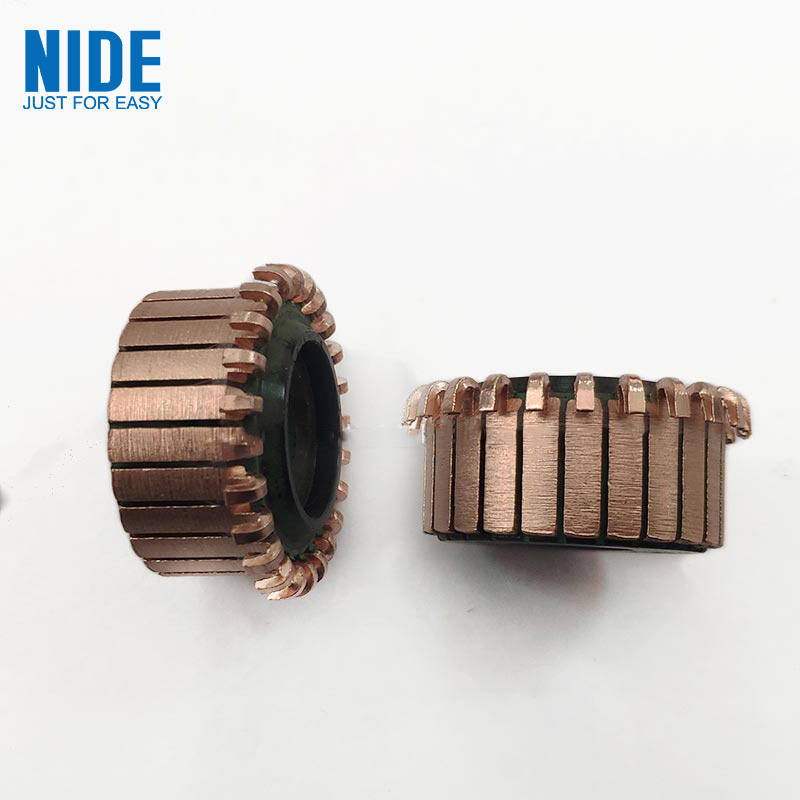

  • Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 0 Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 0

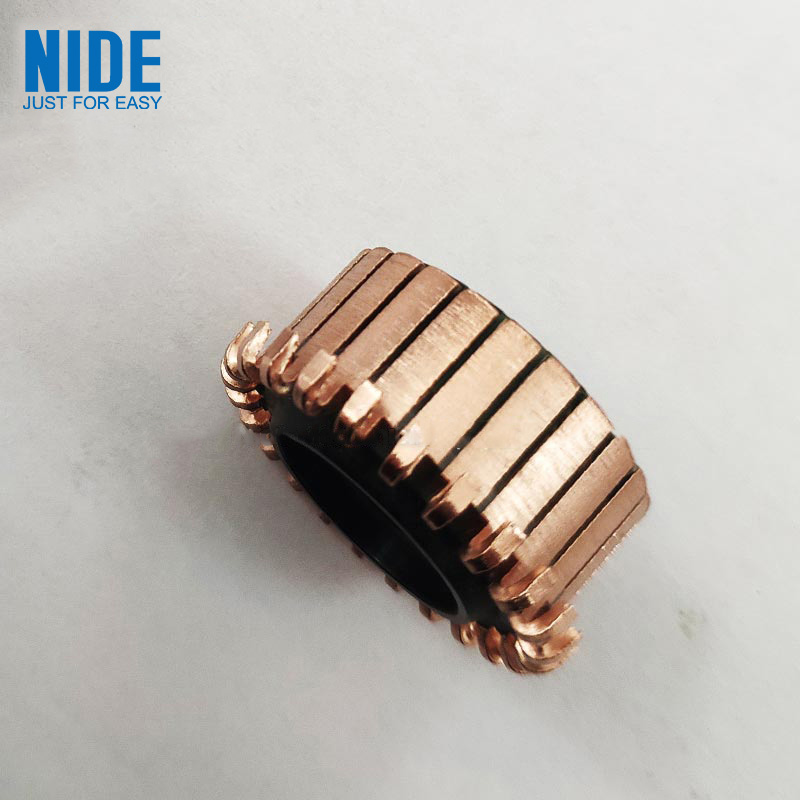

  • Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 1 Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 1

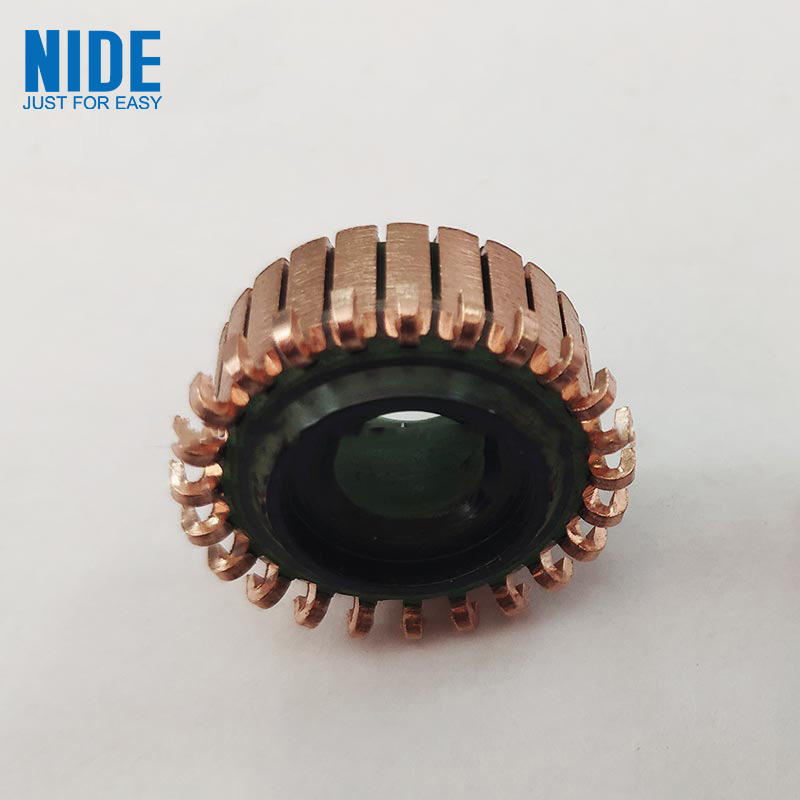

  • Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 2 Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 2

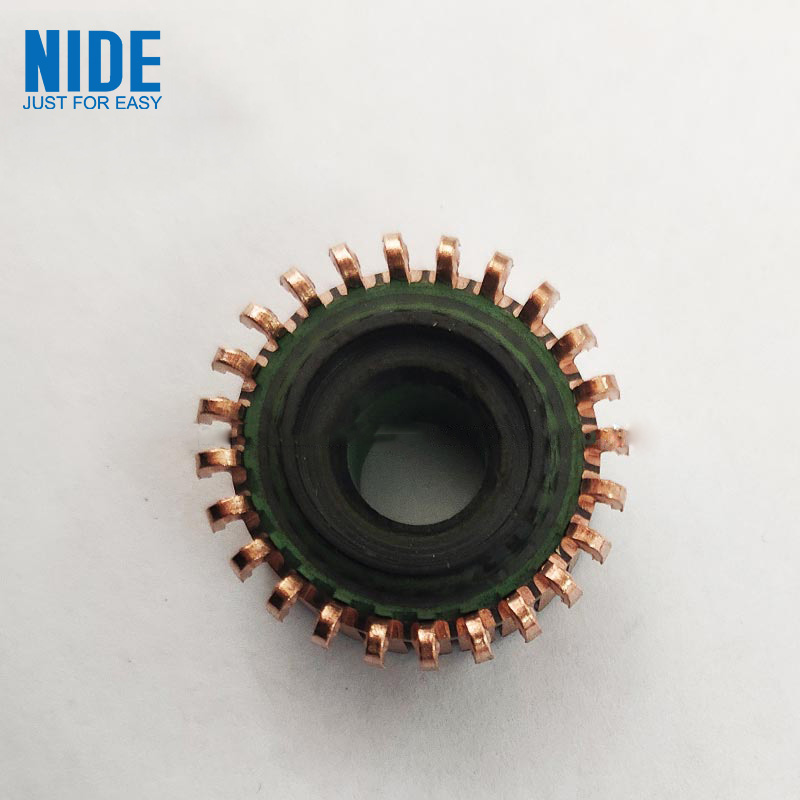

  • Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 3 Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev - 3

Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev

Yog tias koj xav tau Motor Spare Part Commutator rau Cov Khoom Siv Hauv Tsev, thov tig mus rau NIDE. Haishu Nide International yog tus kws tshaj lij lub cev muaj zog commutator chaw tsim khoom thiab cov khoom siv. Nide tsim ntau tshaj 1200 ntau hom hluav taws xob lub cev muaj zog stator thiab armature rotor txhuam commutator, nrog rau hom nuv, riser hom, plhaub hom, hom phiaj, xws li OD 4mm txog OD 150mm.

Xa lus nug

Cov Lus Qhia Txog

Motor Spare Part Commutator rau Cov Khoom Siv Hauv Tsev



1. Khoom Taw Qhia


Lub cev muaj zog Spare Part Commutator rau Cov Khoom Siv Hauv Tsev yog tsim rau lub tshuab xaws tshuab. NIDE tuaj yeem muab cov kab dav dav ntawm lub cev muaj zog commutators kom tau raws li koj qhov ntim siab, kev ua haujlwm siab. Peb lub cev muaj zog commutators yog tsim los ntawm cov kab automated lossis mob siab rau cov hlwb kom zoo ib yam.



Cov ntu ntawm lub cev muaj zog commutator feem ntau yog ua los ntawm tooj liab thiab sib cais los ntawm ib leeg los ntawm mica rwb thaiv tsev. Lub mica raug txiav kom nws nyob hauv qab ntawm cov ntu tooj liab. Slots raug txiav nyob rau hauv lub riser ntawm lub commutator los pab txhawb lub soldering ntawm qhov kawg ntawm cov coils. Muaj ob npaug ntawm cov ntu ntawm cov commutator vim tias muaj cov slots hauv cov tub ntxhais laminated rau cov coils.



Nyob rau DC thiab feem ntau AC motors lub hom phiaj ntawm lub commutator yog los xyuas kom meej tias tam sim no ntws los ntawm lub rotor windings yog ib txwm nyob rau hauv tib txoj kev, thiab lub coil tsim nyog ntawm lub rotor yog energized nyob rau hauv kev hwm rau lub teb coils. Los ntawm mechanically positioning cov txhuam ntawm lub commutator, lub kaum sab xis ntawm kev hloov pauv tuaj yeem teeb tsa ntawm lub zog sib nqus ntawm lub teb windings thiab lub zog sib nqus ntawm lub rotor windings.




2.Product Parameter


Khoom npe:

24 bar tshuab xaws tshuab commutator

Khoom siv:

nyiaj / tooj liab / mica / yas

Xim:

Sawv xim

Hom:

Hook Commutator, Segmented Commutator, Dav Hlau Commutator

MOQ:

5000 Daim

Lub sij hawm xa tuaj

Raws li qhov kev txiav txim kom muaj nuj nqis






3.Product Feature Thiab Daim Ntawv Thov


Lub cev muaj zog Spare Part Commutator rau Cov Khoom Siv Hauv Tsev yog siv hauv kev tswj xyuas lub cev muaj zog, tshwj xeeb tshaj yog rau cov tshuab xaws hauv tsev thiab cov tshuab xaws.

Peb lub cev muaj zog commutator kuj tseem tsim nyog rau lub tshuab ziab plaub hau, tov khoom, lub tshuab nqus tsev ntxhua khaub ncaws, tshuab ntxhua khaub ncaws, kua txiv hmab txiv ntoo, nplawm, kua txiv hmab txiv ntoo, kua mis nyuj, thiab lwm yam khoom siv hauv tsev.





4.Product Paub meej


1. Lub cev muaj zog Spare Part Commutator rau cov khoom siv hauv tsev yog dawb los ntawm void ( npuas) ntau tshaj 1 hli thiab cov kab nrib pleb nyob rau hauv molded resin nto, tab sis cua qhov (qhov tob 1.6 ± 0.1, dav 0.5 ± 0.05 ) yuav tsum zam.

2. Voltage Test: Bar rau bar ntawm 600V, 1s, thiab bar rau ncej ntawm 3750V, 1 min, yuav tsis tawg los yog flash

3. Kev ntsuas spin: Nyob rau hauv 180 ± 2â ƒ, 46800 rpm, 10mins, max hloov hauv OD yog 0.01 hli thiab qhov sib txawv max ntawm bar rau bar yog 0.007.

4. Rwb thaiv tsev Resistance: Lub rwb thaiv tsev tsis kam yog siab tshaj 50MÎ © nyob rau hauv 500V.





Haishu Nide International yog cov kws tshaj lij hauv kev tsim lub cev muaj zog commutator tau ntau xyoo. Cov commutators tau dav siv rau kev lag luam tsheb, cov cuab yeej hluav taws xob, khoom siv hauv tsev, thiab lwm yam motors. Yog tias peb cov qauv uas twb muaj lawm tsis haum rau koj, peb kuj tuaj yeem tsim cov cuab yeej tshiab raws li koj cov duab kos thiab cov qauv.



Kub Cim: Motor Spare Part Commutator Rau Cov Khoom Siv Hauv Tsev, Customized, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, ua nyob rau hauv Suav teb, nqe, hais, CE
