AC lub cev muaj zog commutator 24P armature commutator 30.3 * 12 * 23.5mm

AC lub cev muaj zog commutator 24P armature commutator 30.3 * 12 * 23.5mm

1. AC Motor Commutator Introduction

1. Resin nto tsis muaj npuas, tawg, thiab lwm yam.

2.Dielectric zog: bar-bar 500V / AC, 1S, bar-ncej 3000VAC, 60S, tsis muaj tawg lossis flash

3.Insulation tsis kam: chav tsev kub, 500V / DC Mega meter, rwb thaiv tsev tsis kam>

100MΩ

4.Unmarked kam rau ua raws li GB/T1804-m

5. Hluav taws xob xaiv phom commutator tsis kam: 500V, ntau tshaj 50MΩ

6. spin test: ua spin test rau commutator nyob rau hauv 140 centigrade, qhov ceev yog 5000RPM, qhov kev xeem mus ntxiv rau 3min. Tom qab kev sim, qhov sib txawv ntawm sab nraud yog tsawg dua 0.015, qhov sib txawv ntawm bar thiab bar yog tsawg dua 0.005.

7. Kev ntsuas hluav taws xob: bar rau bar 500V, bar rau bore 1500V, tsis tawg thiab flashing.

2.AC Motor Commutator Parameter (Specification)

3.AC Motor Commutator Feature Thiab Daim Ntawv Thov

Lub Hook Commutator yog tsim rau Universal lub cev muaj zog, muaj lub cev muaj zog, khoom siv hauv tsev, tsheb, cuab yeej hluav taws xob, tsheb kauj vab thiab tsheb kauj vab.

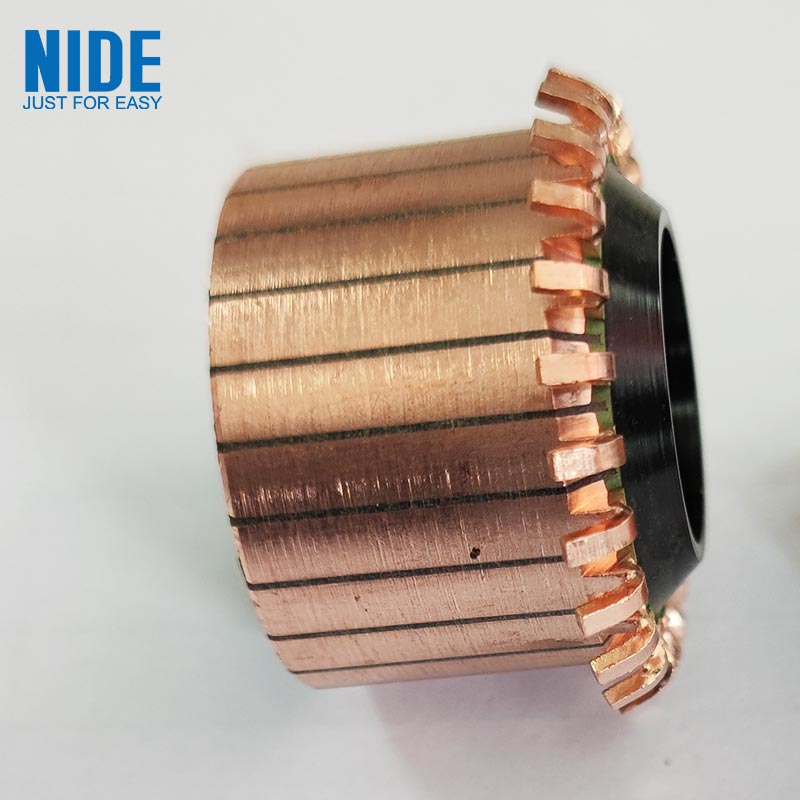

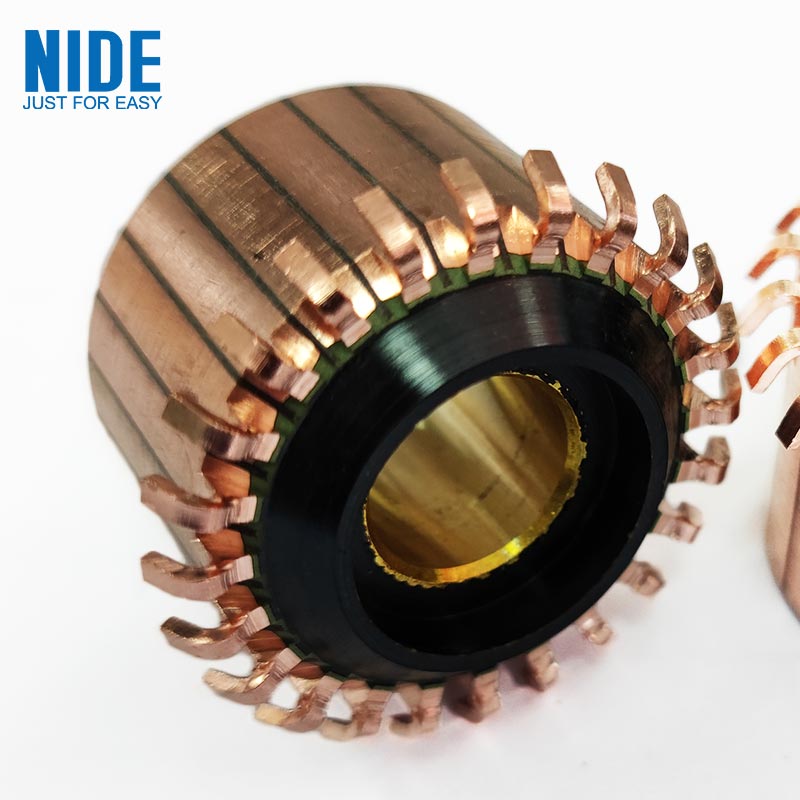

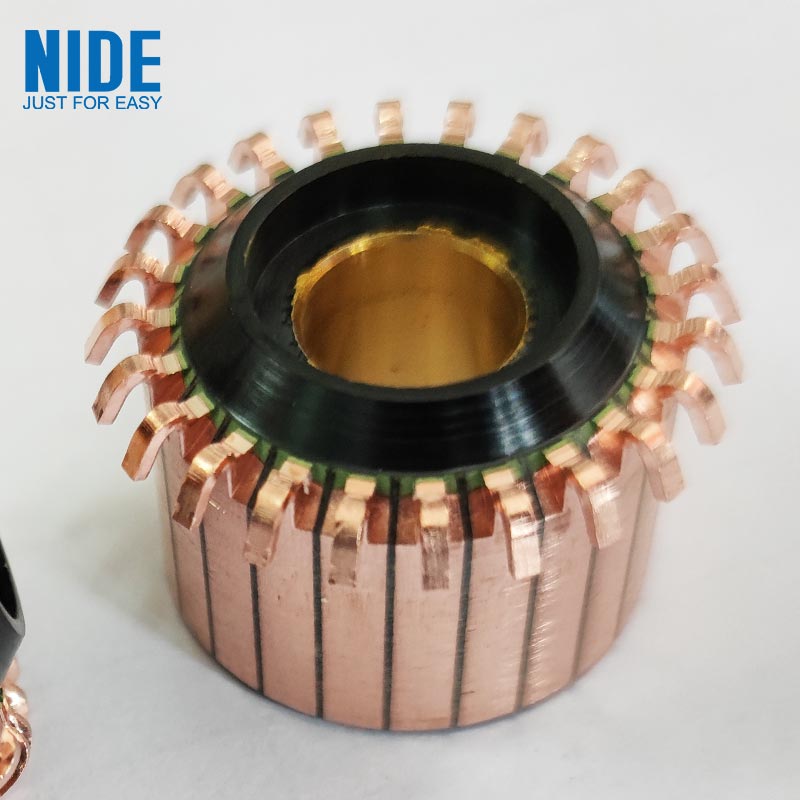

4.AC Motor Commutator Daim duab
